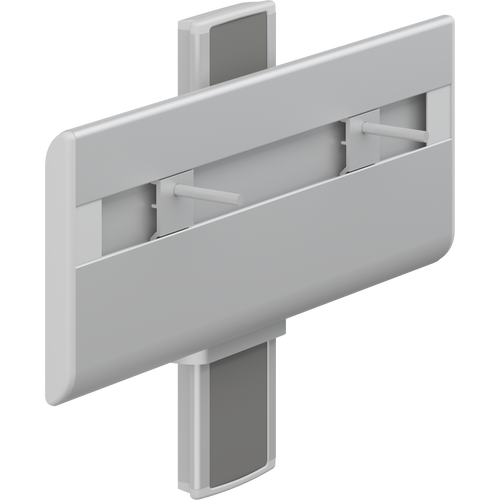

- Pressalit PLUS R4550 wash basin bracket, manually height adjustable with lever control, anthracite cover plate
Wash basin bracket. Manually height adjustable by 240 mm via lever control,. Recommendation: Flexible feed and waste system R2065. (UK markets R2075). Anthracite cover plate for vertical wall track. Materials: Aluminium and ABS polymer. Incl. fixing bolts for wash basin, excl. fixing kit for wall. Can be height adjusted from 728 to 968 mm. For MATRIX CURVE/NEW CURVE and MATRIX SMALL wash basins.
Materials
The wash basin bracket is primarily made of 10-micrometre anodized aluminium. The ends of the bracket cover are capped with ABS polymer.
Product group
Wash basin brackets
Description of product
Wash basin bracket. Manually height adjustable by 240 mm via lever control,. Recommendation: Flexible feed and waste system R2065. (UK markets R2075). Anthracite cover plate for vertical wall track.
Materials: Aluminium and ABS polymer.
Incl. fixing bolts for wash basin, excl. fixing kit for wall.
Colour
Anthracite grey
Adjustability
Height adjustable
Adjustment interval (mm)
240
Maximum load
This product has been tested statically up to 200 kg. As the European standard for technical aids for disabled, BS/EN 12182:2012, requires a static test with safety factor 1.5, the nominal maximum load for this product is therefore 135 kg.
Ergonomics
The wash basin bracket suits all types of bolt-mounted wash basin. Its rounded, sleek design greatly facilitates cleaning.
Functionality
If the height of the wash basin only needs to be adjusted accasionally, a manually regulated wash basin bracket could be the best solution.
Adjustment involves supporting the weight of the basin and part of the bracket. Where frequent height adjustment is expected, use gas-assisted wash basin bracket R4650 or electrically operated wash basin bracket R475x, instead.

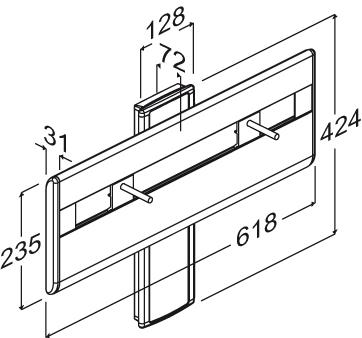

Dimensions

Weight (kg)
5.65
Cleaning instruction
Pressalit Care recommends that chalky deposits be removed from wall tracks and other aluminum parts using a solution of three parts of 30% acetic acid to seven parts tap water. When the aluminum parts have been washed down with this solution, the parts should be wiped over with a damp cloth wrung out in clear water.
